vHAT1 - Extension board for Khadas VIM
vHAT1 Extension to Khadas VIM1 or VIM2 board.
Khadas VIM is a credit card-sized computer designed by WesionTEK.
Core of that universal computer is ARM AmLogic S905X/S912,
more info you can find under Khadas VIM
vHAT1 Extended Khadas VIM by output connectors, brings more functions and offer full usage of that small single board computer
Main Features:
- Extension to Khadas VIM/VIM2 board
- S/PDIF Output
- up-to 2x USB 2.0 Host
- DC In 2.1mm Power Jack
- Raspberry PI Hat's connections
- FAN Connector controlled by GPIO
- I2S Audio codec with Microphone In and Line Out
- UART Debug Console via USB
- and many more supports connections from Khadas VIM
Pre-Orders (vHAT1)
- Email: (preferred)
- Ebay: on the Ebay.com
Download:
- Manual: vHAT1 Manual (1.0,pdf)
- Schematic: vHAT1 Schematic (HW X.0/Ver. 1.3)

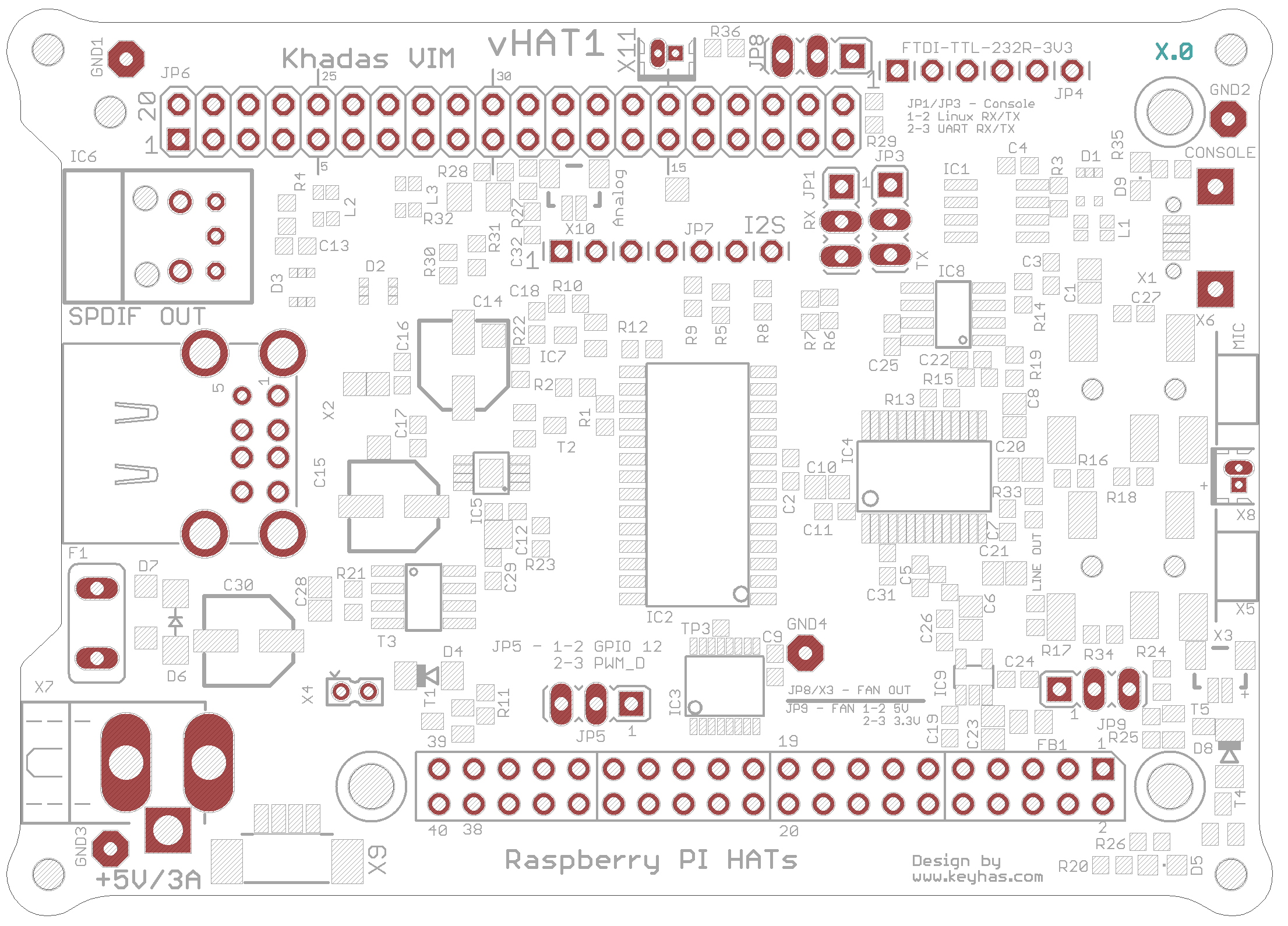

- Silkscreen: vHAT1 Silskcreen TOP (HW X.0)
- Android Testing image: for update: EMMC Update via USB-C Cable for VIM1 (Build 1307-2017) Support I2C Tools, I2S Output, Basic functions VIM1 Android7 EMMC Testing Image (Build 1307-2017)

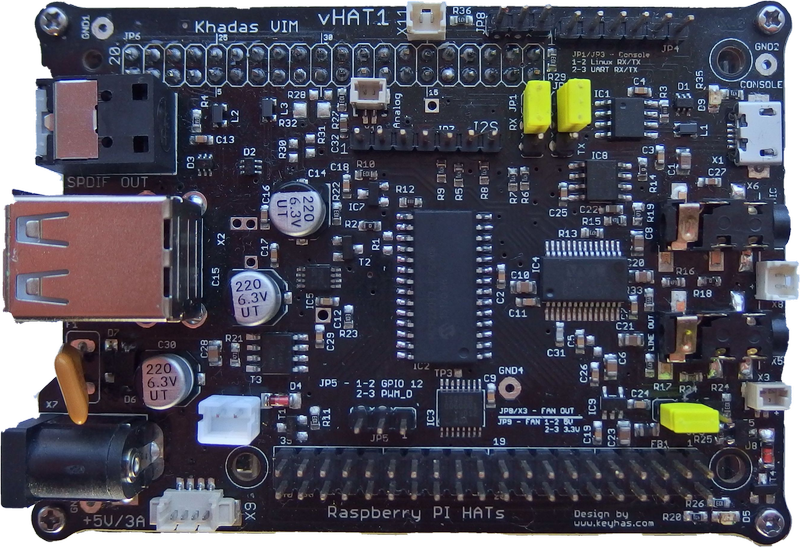

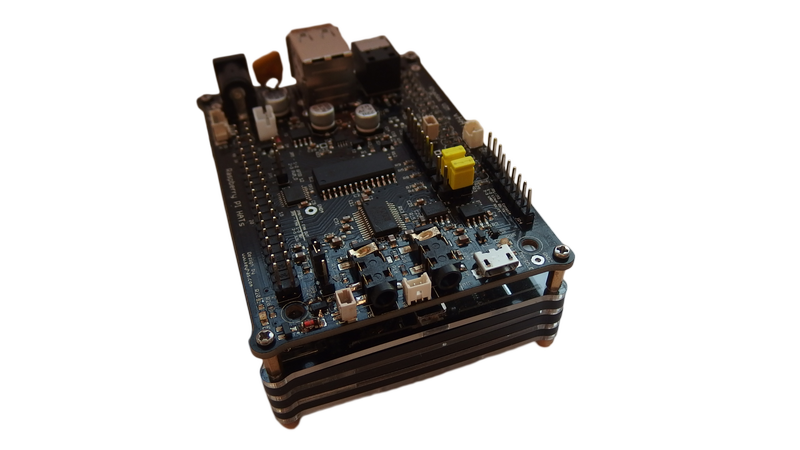

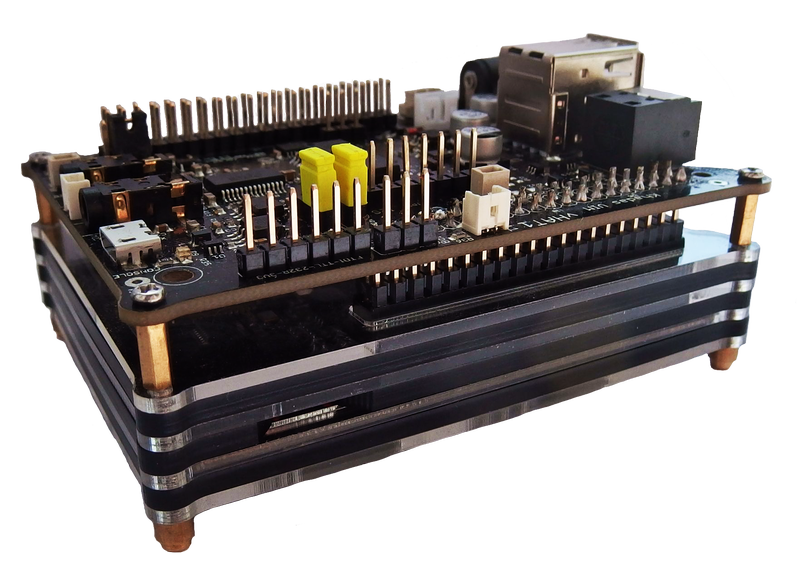

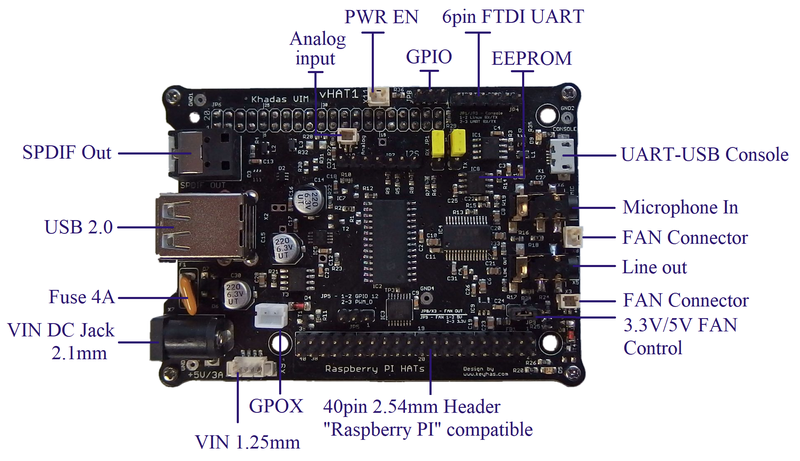

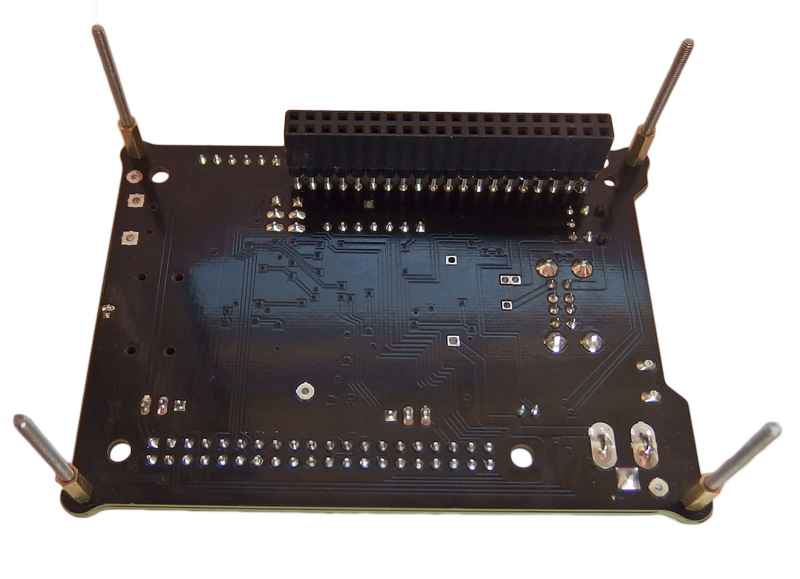

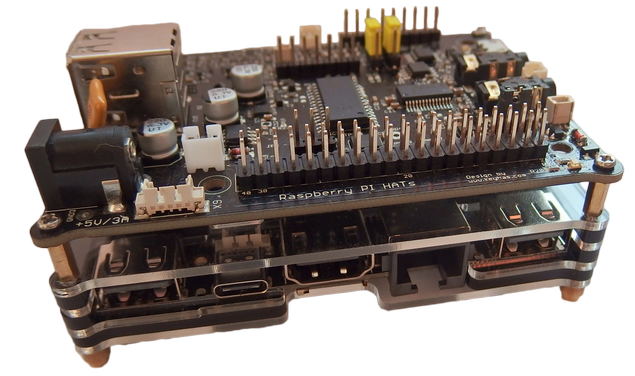

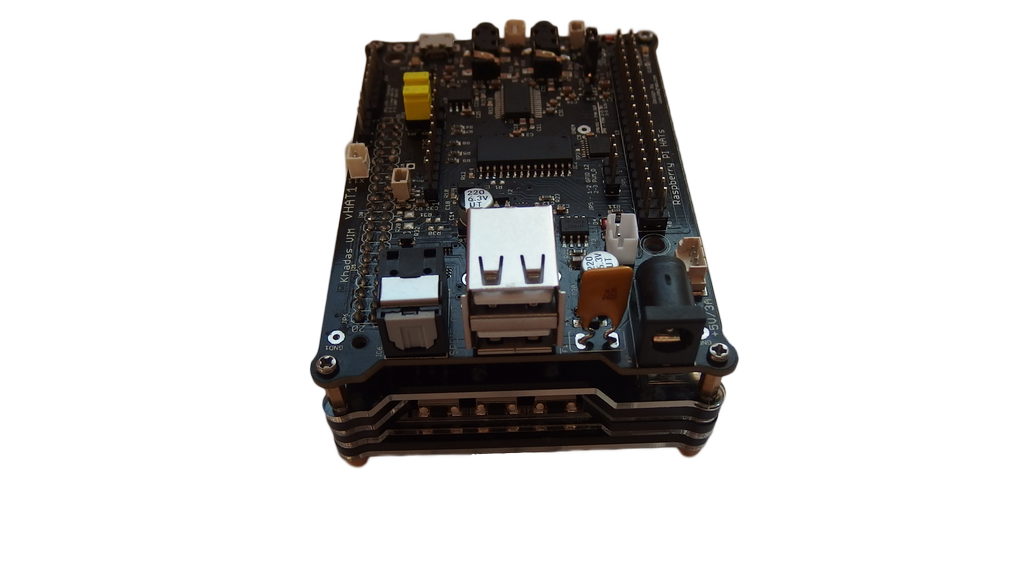

Detailed picture vHAT1 with VIM1
